Customize Low Loss Up To 288 Fibers SM And MM MPO MTP Shuffle Cable

Product Categories
Shenzhen Begate Technology Co.,Ltd.
Contact Now

Customize Low Loss Up To 288 Fibers SM And MM MPO MTP Shuffle Cable

  • 1
  • 2
  • 3

Brand Name : OEM and ODM

Model Number : MTP MPO Shuffle Cable

Certification : CE,ROHS,ISO9001,IEC and TIA

Place of Origin : Made in China

MOQ : We are the professional manufacturer , NO MOQ, 1 piece is ok.

Price : USD 29.99 / piece ~ USD 1999.99 / piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal , Cash

Supply Ability : 3000 pieces / day

Delivery Time : Samples within 3 days, bulk orders within 15 working days

Packaging Details : 1 piece / PE bag; 100 pieces / carton

Fiber Count : 12 Fibers - 288 Fibers

Fiber Mode : SM and MM

Cable Jacket Ratings : Riser (OFNR) , Plenum (OFNP) , Low Smoke Zero Halogen (LSZH)

Cable Jacket Color : Yellow , Aqua , Magenta and customize

Connector Ferrule : 12F / 16F / 24F / 32F / 48F

Connector Ferrule Brand : US Conec, HANKUSAN, Nissin

Connector Type : MTP Female, Male; MPO Female, Male

Connector Brand : US Conec MTP, Senko MPO, Nissin MPO, Sanwa MPO, FURUKAWA MPO

Warranty : 10 years

Are the factory? : Yes, we are. Welcome to visit our factory!

Contact Now

Customize Low Loss Up To 288 Fiber MPO MTP Shuffle Cable

Features of MPO MTP Shuffle Cable

  • Low loss performance
  • Up to 288 fibers – ideal for high-density applications
  • Available in OS1, OS2, G.657A2, OM3, OM4 Fiber Grades – OM1 and OM2 available upon request
  • Option for LSZH, OFNP or OFNR cable jacket
  • 100% factory terminated and tested
  • Pulling eyes are provided as an option to protect the fiber ends during installation
  • Save installation and reconfiguration time
  • OEM and ODM

Applications of MPO MTP Shuffle Cable

  • Data communication network.
  • Optical System Access network.
  • Storage area networking fiber channel.
  • High density architectures
  • 40/100G applications
  • Parallel optics
  • InfiniBand
  • The internal connector application in fiber equipment

Specification of MPO MTP Shulffle cable

Fiber Count 12 Fibers - 288 Fibers
Fiber Mode Single mode: OS2/G657 9/125um
Multimode: OM4 50/125um, OM3 50/125um
Fiber Brand

SMF-28® Ultra optical fiber

Corning ClearCurve® multimode fiber
Cable Jacket Ratings Riser (OFNR)
Plenum (OFNP)
Low Smoke Zero Halogen (LSZH)
Cable Jacket Color OS2/G657: Yellow
OM3: Aqua; OM4: Aqua/Magenta
or Customized
Polarity Customized
Connector Ferrule 12F/16F/ 24F/32F/48F
Connector Ferrule Brand US Conec, HANKUSAN, Nissin
Connector Type MTP Female, Male; MPO Female, Male
Connector Brand US Conec MTP, Senko MPO, Nissin MPO, Sanwa MPO, FURUKAWA MPO
Connector Color Ferrule SM(APC) SM(PC) OM3 OM4 or
Low loss Yellow Yellow Aqua Magenta Customized
Standard Green Blue Aqua Magenta
Connector Boot Color Green/Black/ or Customized
Pulling eye Customized
Operating Temperature -20°C to +70°C
Storage Temperature -40°C to +85°C

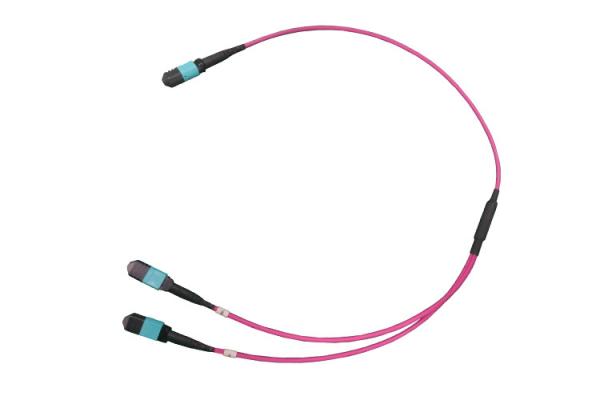

24F MPO MTP Shuffle Cable structure show

Customize Low Loss Up To 288 Fibers SM And MM MPO MTP Shuffle Cable

Typical Cable Structure of MPO MTP Shuffle Cable

Customize Low Loss Up To 288 Fibers SM And MM MPO MTP Shuffle Cable

Fiber Count OD(mm) Nominal Weight(kg/km) Max.Tension(N) Max.Crushing Resistane(N/100)
Short term long Term Short term long Term
12 3.0±0.1 8.1 150 80 500 150
24 3.0±0.1 8.5 160 80 500 150
24 9.0±0.5 72 500 180 1000 300
36 9.0±0.5 78 500 180 1000 300
48 9.0±0.5 79 600 200 1000 300
60~72 11.2±0.5 126 1000 300 1000 300
96 13.5±0.5 178 1000 300 1000 300
144 17.5±0.5 285 1000 300 1000 300

Note: The true weight of optical cable may have some tolerance with the above-stated value.

Begate MPO MTP Shuffle cables are 100% factory terminated and tested

Customize Low Loss Up To 288 Fibers SM And MM MPO MTP Shuffle Cable

Ordering information

Product Type Connector A Connector B Fiber Count Fiber Type Length Polarity Jacket
MT=MPO / MTP Trunk Cable Assemblies MPO / M = MTP / UPC 8 Fiber Male LC = LC / UPC 8 = 8 Fiber OS1 = 9um Single Mode OS1 1M = 1 meter A = Type A ( Straight Through) PVC
MF=MPO / MTP Fan - out / Harness Fiber Optic Cable MPO / F = MTP / UPC 8 Fiber Female LCA= LC / APC 12 = 12 Fiber OS2 = 9um Single Mode OS2 2M = 2 meter B = Type B (Cross) LSZH
MC=MPO / MTP Fiber Optic Cassette MPO / A / M = MTP / APC 8 Fiber Male SC = SC /UPC 24 = 24 Fiber OM1 = 62.5um Multi Mode OM1 3M = 3 meter C = Type C (Cross Pair) OFNP
ML=MPO / MTP Loopback MPO / A / F = MTP / APC 8 Fiber Female SCA = SC / APC 48 = 48 Fiber OM2 = 50um Multimode OM2 xx m = xx meter OFNR
MP=MPO Fiber Optic Cassette Rack Mount Holders MPO / M = MTP / UPC 12 Fiber Male FC = FC / UPC 72 = 72 Fiber OM3 = 50um Multimode 10G OM3
MPO / F = MTP / UPC 12 Fiber Female FCA = FC / APC 96 = 96 Fiber OM4 = 50um Multimode 10G OM4
MPO / A / M = MTP / APC 12 Fiber Male DLC = Dulpex LC / UPC 144 = 144 Fiber
MPO / A / F = MTP / APC 12 Fiber Female DLCA = Duplex LC / APC 288 = 288 Fiber
MPO 24 / M = MTP / UPC 24 Fiber Female
MPO 24 / F = MTP / UPC 24 Fiber Female
MPO 24 / A / M = MTP / APC 24 Fiber Male
MPO 24 / A / F = MTP / APC 24 Fiber Female
