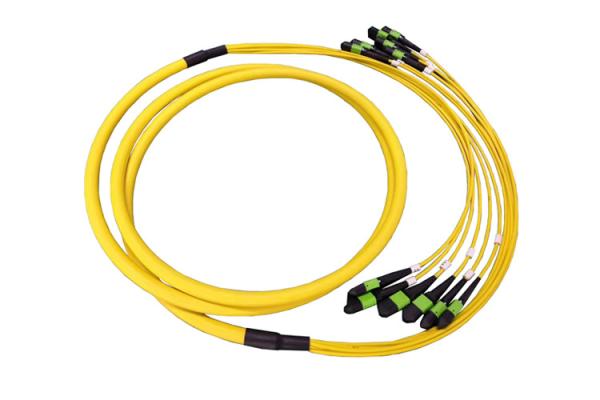

MPO MTP Trunk Cable APC Polish Single Mode 9 / 125 LSZH Optical Cable

Name: MPO MTP Trunk Cable APC Polish Single Mode 9 125 LSZH Optical Cable
Brand: OEM and ODM
Price: 1 USD

China MPO MTP Trunk Cable APC Polish Single Mode 9 / 125 LSZH Optical Cable factory

Brand Name : OEM and ODM

Model Number : MPO MTP Trunk Cable

Certification : CE,ROHS,ISO9001,IEC and TIA

Place of Origin : Made in China

MOQ : NO MOQ, 1 piece can be provided.

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal , Cash

Supply Ability : 3000 pieces / day

Delivery Time : Samples within 3 days, bulk orders within 15 working days

Packaging Details : Each goods wrapped with plastic film and then packed into paper carton. For long length cable, it will be spool packaging.

Fiber Mode : Single mode: OS2/G.657 (9/125um) Multimode: OM3(50/125um); OM4(50/125um)

Cable Jacket Ratings : LSZH , OFNR , OFNP

Cable Jacket Color : OS2/G.657: Yellow OM3: Aqua OM4: Aqua/Magenta or Customized

Connector Type : Male and Female

Fiber counts : 12 / 16 / 24 / 32 / 36 / 48 / 72 / 96 / 144-fibers

Polarity : Type A, Type B, Type C

Warranty : 10 years

Do you accept print logo? : Yes, we do. Customer logo can be printed on the cable and label as per request.

Contact Now

MPO MTP Trunk Cable APC Polish Single Mode 9 / 125 LSZH Optical Cable

Begate MTP/MPO trunk cable is designed for high-density applications, especially for data center, it facilitates rapid deployment, provides an efficient way to install a large number of cables and can reduce installation time and save space. It serves as a permanent link connecting the MTP/MPO modules to each other.

We provides 12F, 24F, 36F, 48F, 72F, 96F, 144 fibers/cores MTP/MPO trunk cables that support 12-strand and 24-strand in single-mode or multimode. MPO trunk cables are pre-terminated, fully tested and packed with test reports in the factory.

Features of MPO MTP optical cable

Low insertion loss, high return loss
MT-based Multi-fiber Connector, 36-144 fiber connector terminations and assemblies
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options available
Color-coded housings available to differentiate fiber type, polish type and/or connector grade
Good in repeatability and exchangeability
.100% pre-terminated and tested in factory to ensure transfer performance.
Rapid configuration and networking, reduce installation time.
Supports 40G and 100G network applications.
Cable Jacket material: LSZH, OFNR, OFNP available.

Application of MPO MTP optical cable

Data communication network.
Optical System Access network.
Storage area networking fiber channel.
High density architectures.
Data centers
Parallel transmission network
10G/40G/100G/400G net work transmission
Fiber network deployment

Technical specification of MPO MTP optical cable

Optical Properties	Single mode		Multimode
Insertion Loss (dB)	Low loss	Standard	Low loss	Standard
	≤0.35(Typical:≤0.25)	≤0.75(Typical:≤0.4)	≤0.35(Typical:≤0.2)	≤0.5(Typical:≤0.35)
Return Loss (dB)	PC≥50; APC≥60		PC≥20; APC≥40
Wavelength (nm)	1310/1550		850/1300
Durability	≤0.3 (dB)typical change, 50 matings
Fiber Attenuation (dB/km)	Single Mode: ≤0.35 at 1310nm, ≤0.2 at 1550nm
	Multimode: ≤2.3 at 850nm, ≤0.6 at 1300nm

Cable Structure of MTP MPO Optical Cable

Fiber Count	OD(mm)	Nominal Weight(kg/km)	Max.Tension(N)		Max.Crushing Resistane(N/100)
Fiber Count	OD(mm)	Nominal Weight(kg/km)	Short term	long Term	Short term	long Term
12	3.0±0.1	8.1	150	80	500	150
24	3.0±0.1	8.5	160	80	500	150
24	9.0±0.5	72	500	180	1000	300
36	9.0±0.5	78	500	180	1000	300
48	9.0±0.5	79	600	200	1000	300
60~72	11.2±0.5	126	1000	300	1000	300
96	13.5±0.5	178	1000	300	1000	300
144	17.5±0.5	285	1000	300	1000	300

MPO MTP Trunk Cable APC Polish Single Mode 9 / 125 LSZH Optical Cable
How would you describe the MPO MTP OPTICAL CABLE you want?

Trunk Assembly, Fiber count-Fiber, MTP Female (no pin) , Singlemode, Mini-Core Riser (OFNR), A-End Furcation Length xxx mm, B-End Furcation Length xxx mm, Overall Length xxx Meters, No Pulling Eye.

MPO MTP optical cable production line

MPO MTP Trunk Cable APC Polish Single Mode 9 / 125 LSZH Optical Cable
100% factory tested with traceable test data

MPO MTP data center solution series products

MPO MTP Trunk Cable APC Polish Single Mode 9 / 125 LSZH Optical Cable

MPO/MTP Trunk Cable
MPO/MTP Harnesses Cables
MPO/MTP Fan out 0.9mm Patch Cords
IP-Series MPO/MTP Assembly
High Density Patch Cords
MPO/MTP Loopback
MT Patch Cords
MPO/MTP Cassettes
MPO/MTP Fiber Optic Patch Panel
